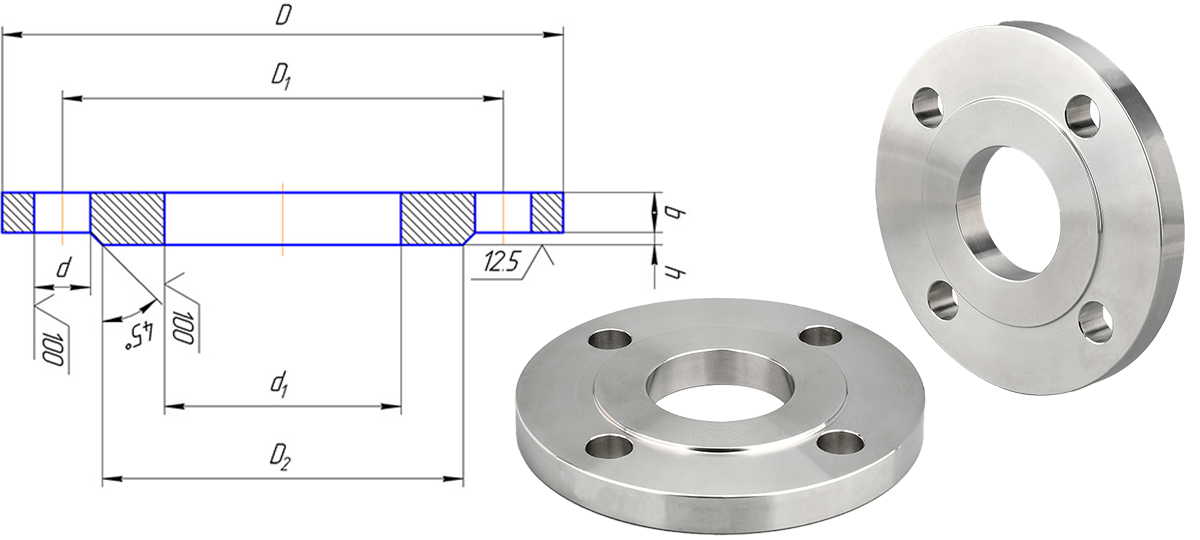

GOST 33259 Plate-Type Flat Welding Flange
The flange is a part connected between the shaft and the shaft, which is used for the connection between the pipe ends;
Product Detail

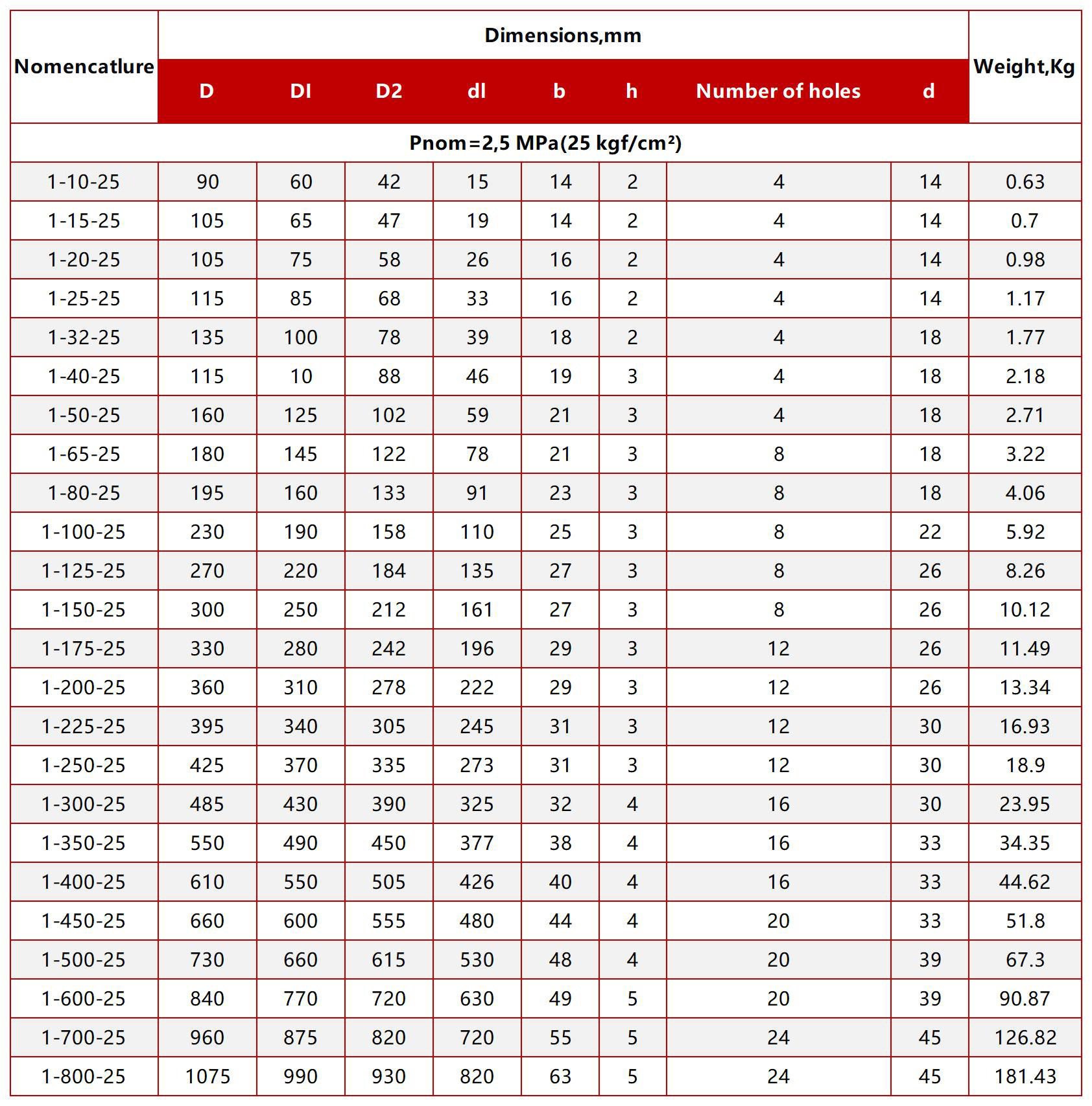

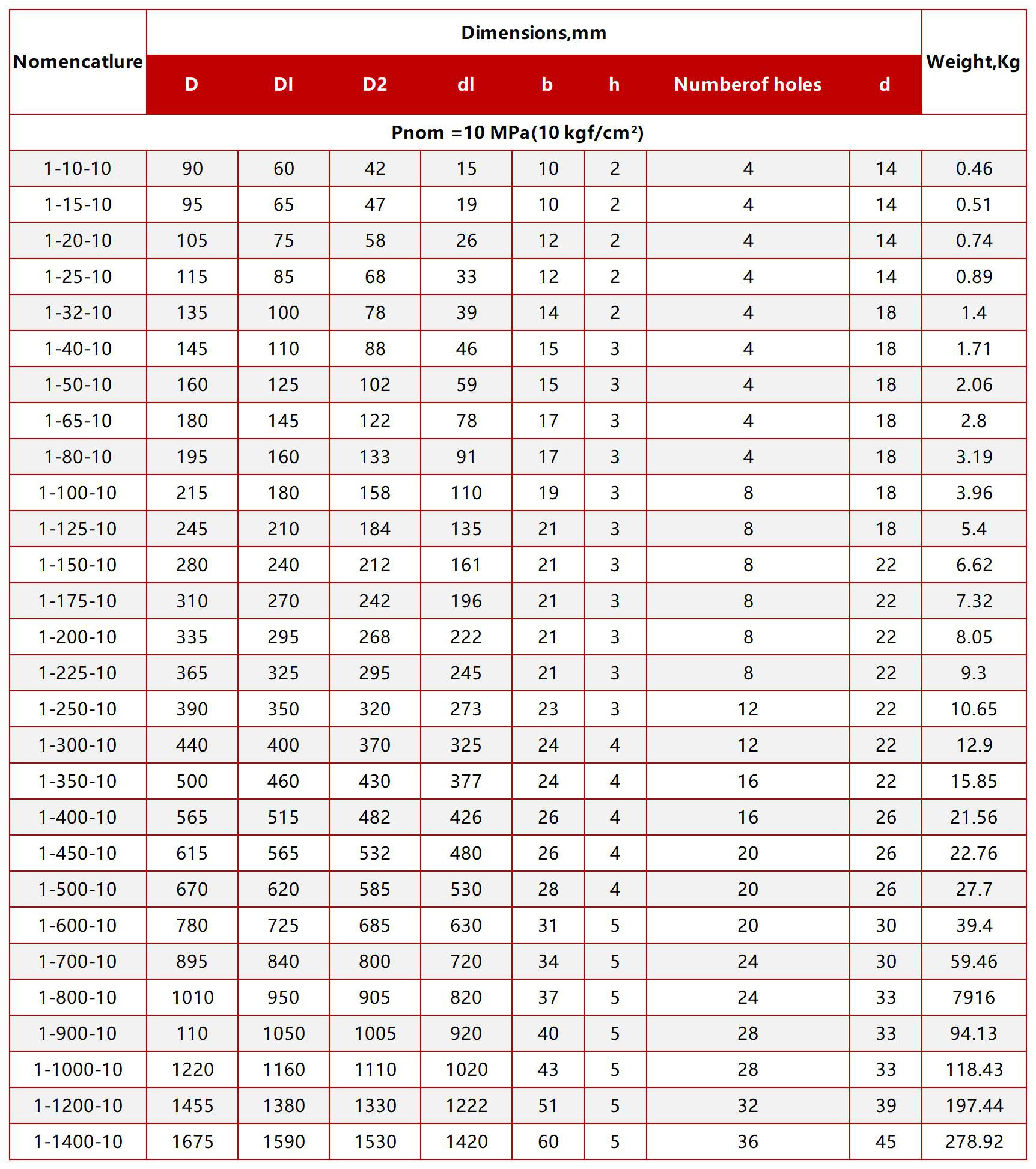

Standard
Product introduction
Plate (PL) Flanges, also known as flat flanges or plain flanges, are a type of pipe flange designed for low-pressure and non-critical applications. They are simple in design and cost-effective, making them a popular choice for various industries. Below are the key features and details about PL flanges:
1. Design:
- PL flanges are flat, circular discs with bolt holes around the perimeter.
- They have a flat face (FF) that mates with the flat face of another flange or gasket.
- The bore of the flange matches the bore of the pipe, ensuring smooth flow characteristics.
2. Applications:
- Commonly used in low-pressure systems, such as water, air, and gas lines.
- Suitable for applications where welding is not required, such as in low-temperature environments.
- Widely used in industries such as food processing, water treatment, and HVAC systems.
3. Advantages:
- Simple and cost-effective design.
- Easy to install and maintain.
- Suitable for low-pressure and low-temperature applications.
4. Limitations:
- Not suitable for high-pressure or high-temperature applications.
- The flat face design may be prone to leakage under cyclic loading or vibration.
5. Standards:
- PL flanges are manufactured according to standards such as ASME B16.5, ANSI, DIN, and EN.
6. Installation:
- The flange is aligned with the pipe and bolted to the mating flange.
- Gaskets are used between the flange faces to ensure a leak-proof seal.
Plate flanges are a reliable choice for low-pressure piping systems, offering simplicity and cost-effectiveness. Let me know if you need further details!
Product shooting
Factory
Product packaging
We can provide wooden box packaging, pallet packaging, carton box packaging, and we can accept customized packaging.
FAQ
Q:Can I Get A Sample For Testing?
A:Yes, We Can Provide Free Samples, But You Need To Pay For The Shipping Cost.
Q:Is It Safe On The Payment For Me As We Are The First Cooperation?
A:We Can Do The Trade Assurance On Alibaba, Which Will Guarantee Your Payment Safety, We Also Accept Other Safe Payment Way As You Want.
Q:Do You Accept Product Customization?
A:Yes, We Can Accept Material Customization, Specification Model Customization, Drawing Customization, Packaging Customization.
Q:Can I Put Our Logo On The Product?
A:Yes, We Can Provide You With Laser Engraving Logo And Sticker Logo For Free.
Q:What Is The Moq?
A:For Trial Order, We Can Sell Even One Piece
Q:How Long Is The Product Warranty Period?
A:One Year, If The Product Is Non-Artificially Damaged During The Warranty Period, We Can Provide You With A New Product For Free.
Q:How Long Is The Delivery Time?
A:If We Have Stock, We Will Ship Within 2 Days, If There Is No Stock, We Will Ship Within 5-7 Days.
Q:Do You Accept Oem/Odm Service?
A:Yes, We Can Produce Products According To Your Requirements.
