ANSI B16.5 Slip-on Flange
The flange is a part connected between the shaft and the shaft, which is used for the connection between the pipe ends;
Product Detail

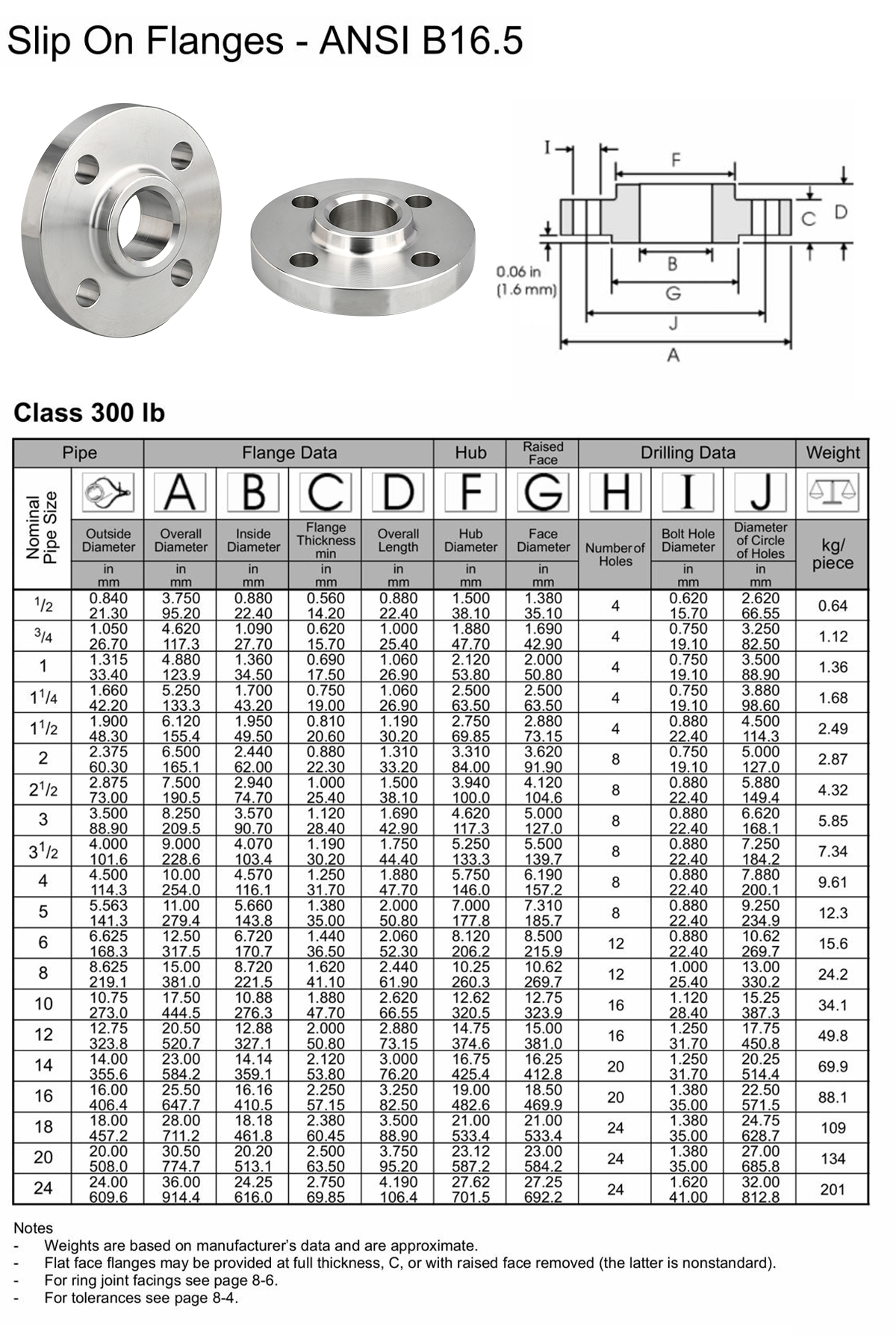

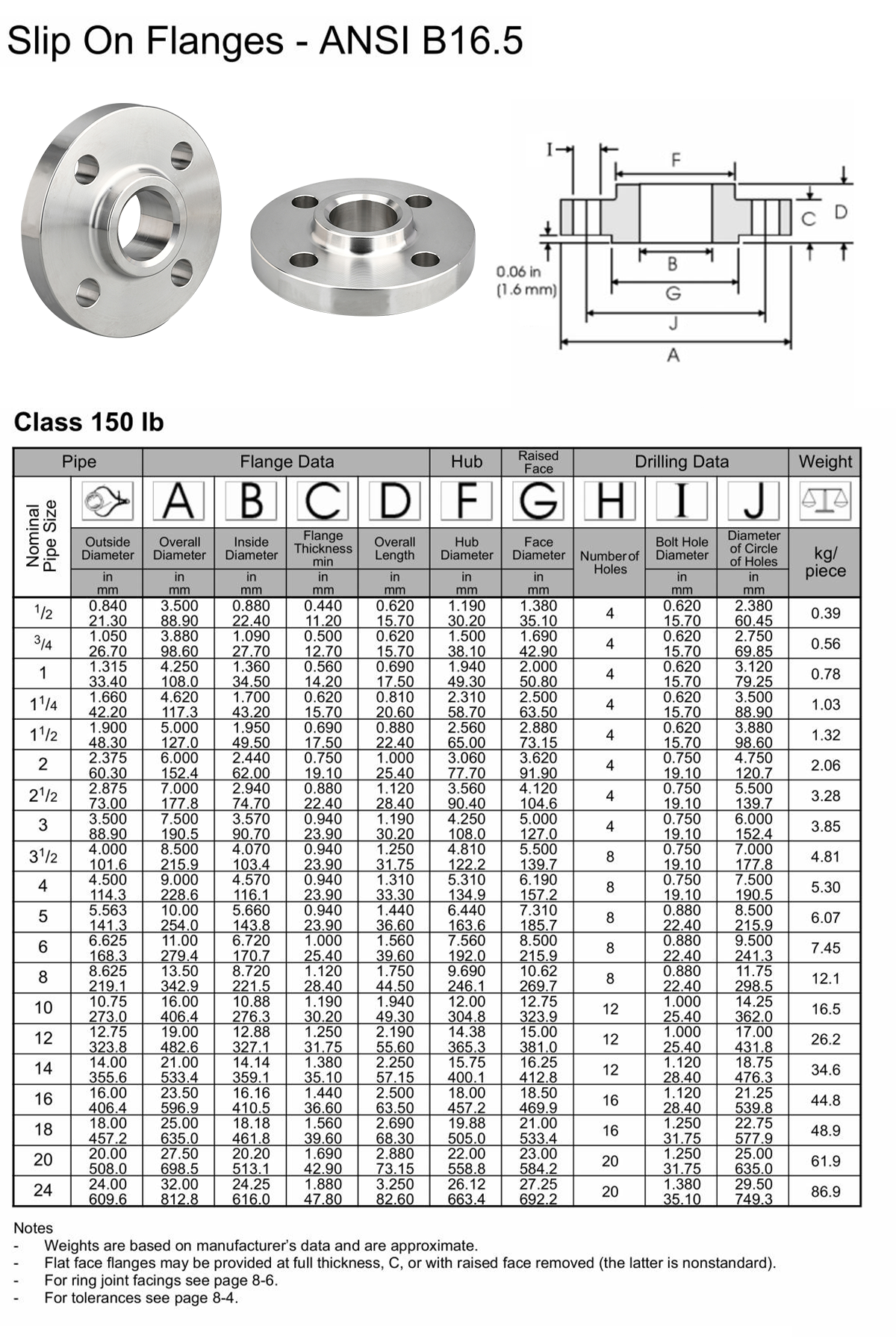

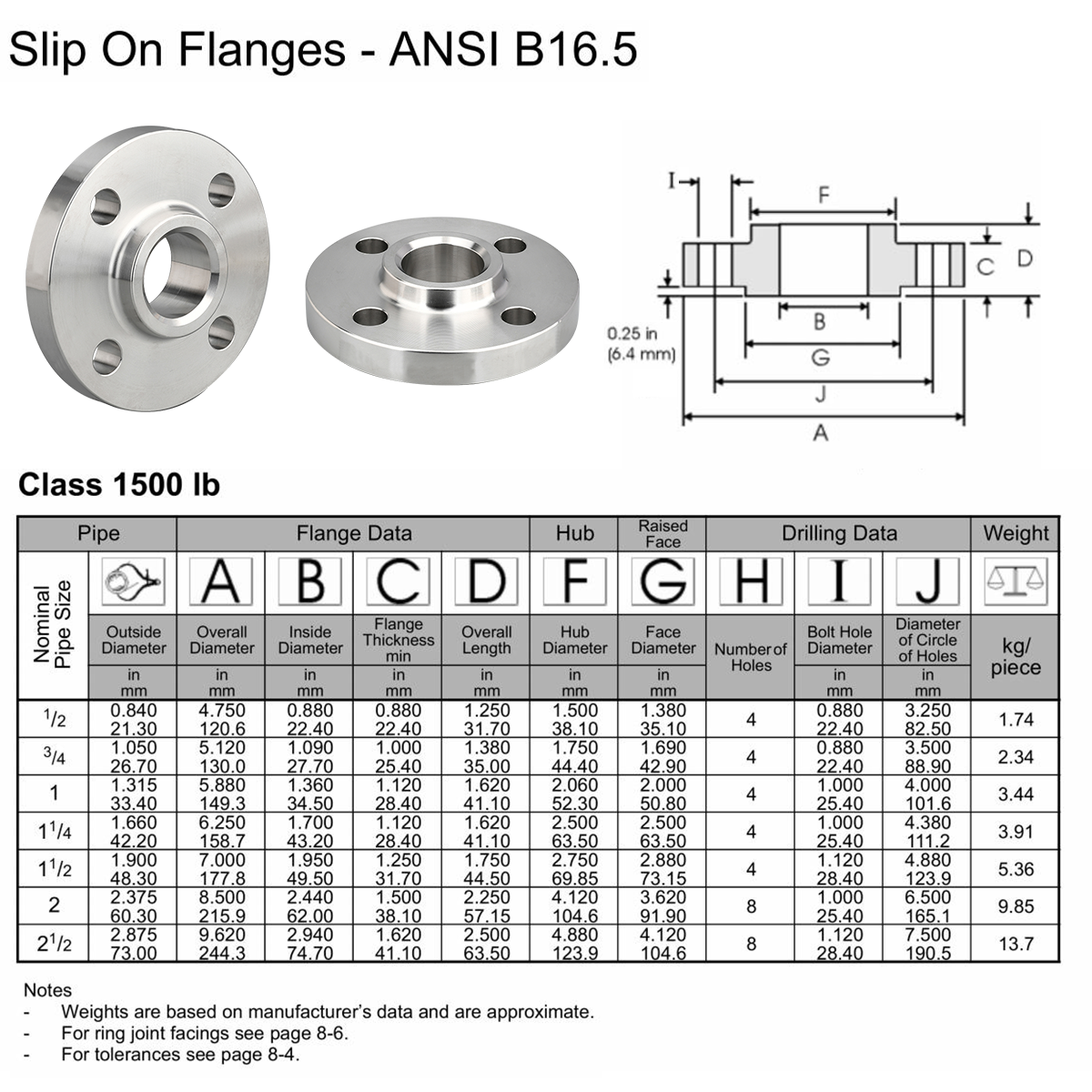

standard
Product introduction
Slip-On (SO) Flanges are a type of pipe flange designed for easy installation and moderate-pressure applications. They are widely used in various industries due to their simplicity and cost-effectiveness. Here are the key features and details about SO flanges:
1. Design:
- SO flanges have a slightly larger bore than the pipe, allowing the pipe to "slip on" before being welded.
- They are welded both on the inside (to the pipe) and outside (to the flange hub) to create a secure connection.
- The flange face can be raised (RF), flat (FF), or ring-type joint (RTJ), depending on the application.
2. Applications:
- Commonly used in low-to-moderate pressure systems.
- Suitable for applications where frequent disassembly is not required.
- Widely used in water treatment, chemical processing, and HVAC systems.
3. Advantages:
- Easy to align and install compared to other flange types.
- Cost-effective and readily available.
- Provides good flow characteristics due to the smooth bore.
4. Limitations:
- Not suitable for high-pressure or high-temperature applications.
- Requires welding, which can be time-consuming compared to threaded flanges.
5. Standards:
- SO flanges are manufactured according to standards such as ASME B16.5, ANSI, DIN, and EN.
6. Installation:
- The pipe is inserted into the flange and welded both inside and outside to ensure a strong connection.
- Gaskets are used between the flange faces to ensure a leak-proof seal.
If you were referring to a different type of flange or have additional context, feel free to clarify, and I’ll be happy to assist further!

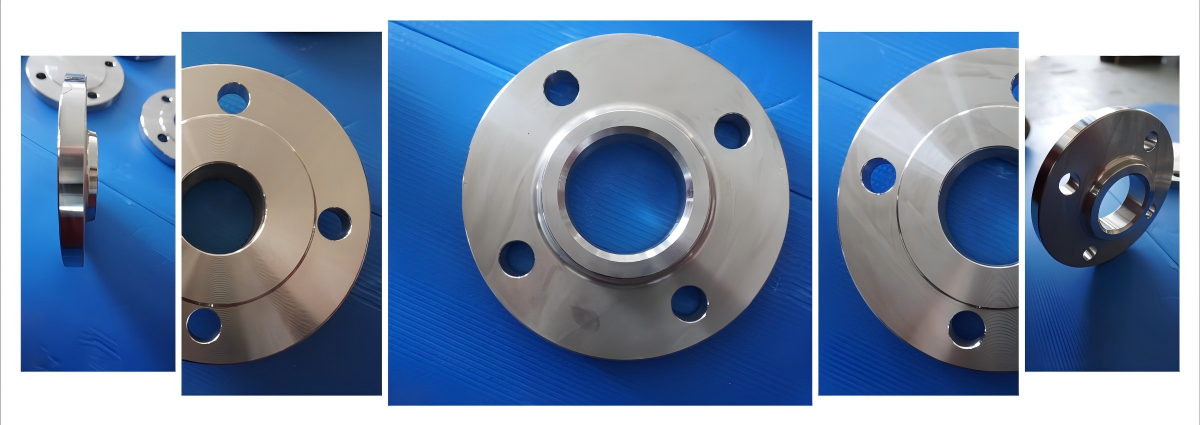

Product shooting
Factory
Product packaging
We can provide wooden box packaging, pallet packaging, carton box packaging, and we can accept customized packaging.
