Spectacle Blind Flange
The flange is a part connected between the shaft and the shaft, which is used for the connection between the pipe ends;
Product Detail
Product introduction
Flange,also called flange disc or flange. The flange is a part connected between the shaft and the shaft, which is used for the connection between the pipe ends; It is also useful in the flange on the import and export of the equipment for the connection between two devices, such as the reducer flange. Flange connection or flange joint refers to a detachable connection which is connected by flanges, gaskets and bolts as a group of combined sealing structures.
Because the flange has good comprehensive performance, it is widely used in chemical industry, construction, water supply,drainage, petroleum, light and heavy industry, refrigeration, health, water heating, fire, power, aerospace, shipbuilding and other basic projects.
Product specification
| Standards | ANSI | ANSI B16.5 ASME B16.47 series A/B |
| DIN | DIN2635 | |
| EN | EN1092-1:2002 | |
| JIS | JIS B2220-2004, KS D3576, KS B6216 KS B1511-2007 JIS B2261; JIS B8210 | |
| BS | BS4504 BS10 Table D/E | |
| Material | ANSI | SS ANSI 304(L); ANSI 316(L); Duplex Steel ASTM A182; S31803; S32205 |
| DIN | CS RST37.2;S235JR SS 304/304L,316/316L | |
| EN | CS RST37.2;S235JR;C22.8SS 304/304L,316/316L | |
| JIS | SS400,SF440 SS 304/304L, 316/316L | |
| BS | CSRST37.2;S235JR;C22.8;Q235SS 304/304L,316/316 | |
| Pressure | ANSI | Class 150, 300, 600, 900, 1500, 2500lbs |
| DIN | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
| EN | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
| JIS | 1K,2K,5K,10K,16K,20K,30K,40K | |
| BS | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
| Size | ANSI | 1/2″ – 48″ |
| DIN | DN15-DN1200 | |
| EN | DN15-DN1200 | |
| JIS | 15A-1500A | |
| BS | DN15-DN1200 | |
| Packaging | Loose package; Packaged in bundles(2Ton Max); bundled pipes with two slings at the both end for easy loading and discharging; End with Plastic caps; wooden cases. | |
| Test | Chemical Component Analysis, Mechanical Properties, Technical Properties, Exterior Size Inspection, hydraulic testing , X-ray Test. | |
| Application | Light and heavy industry, refrigeration, health, water heating, fire, power, aerospace, shipbuilding and other basic projects. | |

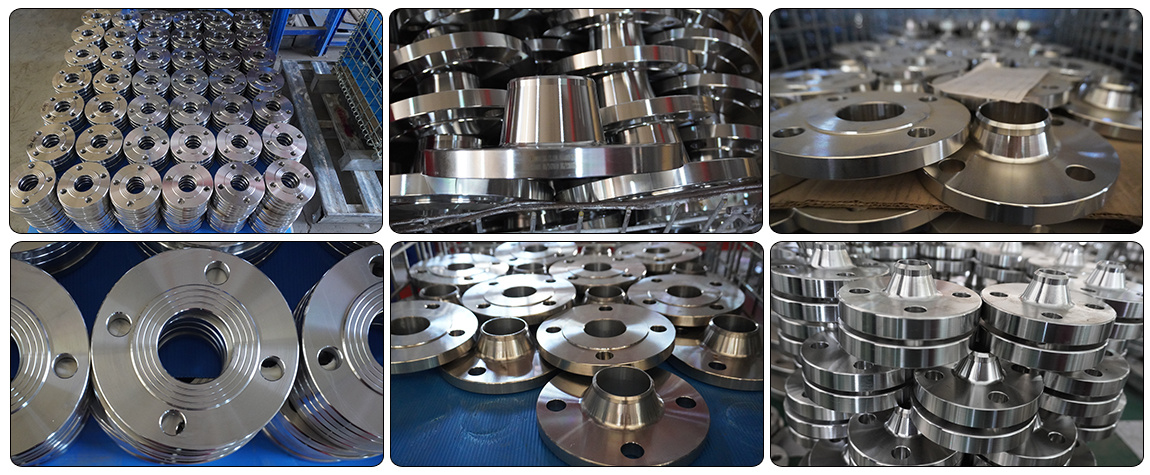

Product shooting
Factory
Product packaging
We can provide wooden box packaging, pallet packaging, carton box packaging, and we can accept customized packaging.
FAQ
Q:Can I Get A Sample For Testing?
A:Yes, We Can Provide Free Samples, But You Need To Pay For The Shipping Cost.
Q:Is It Safe On The Payment For Me As We Are The First Cooperation?
A:We Can Do The Trade Assurance On Alibaba, Which Will Guarantee Your Payment Safety, We Also Accept Other Safe Payment Way As You Want.
Q:Do You Accept Product Customization?
A:Yes, We Can Accept Material Customization, Specification Model Customization, Drawing Customization, Packaging Customization.
Q:Can I Put Our Logo On The Product?
A:Yes, We Can Provide You With Laser Engraving Logo And Sticker Logo For Free.
Q:What Is The Moq?
A:For Trial Order, We Can Sell Even One Piece
Q:How Long Is The Product Warranty Period?
A:One Year, If The Product Is Non-Artificially Damaged During The Warranty Period, We Can Provide You With A New Product For Free.
Q:How Long Is The Delivery Time?
A:If We Have Stock, We Will Ship Within 2 Days, If There Is No Stock, We Will Ship Within 5-7 Days.
Q:Do You Accept Oem/Odm Service?
A:Yes, We Can Produce Products According To Your Requirements.
