High-Pressure Half-Coupling (Threaded)
Keyword:
Product Detail

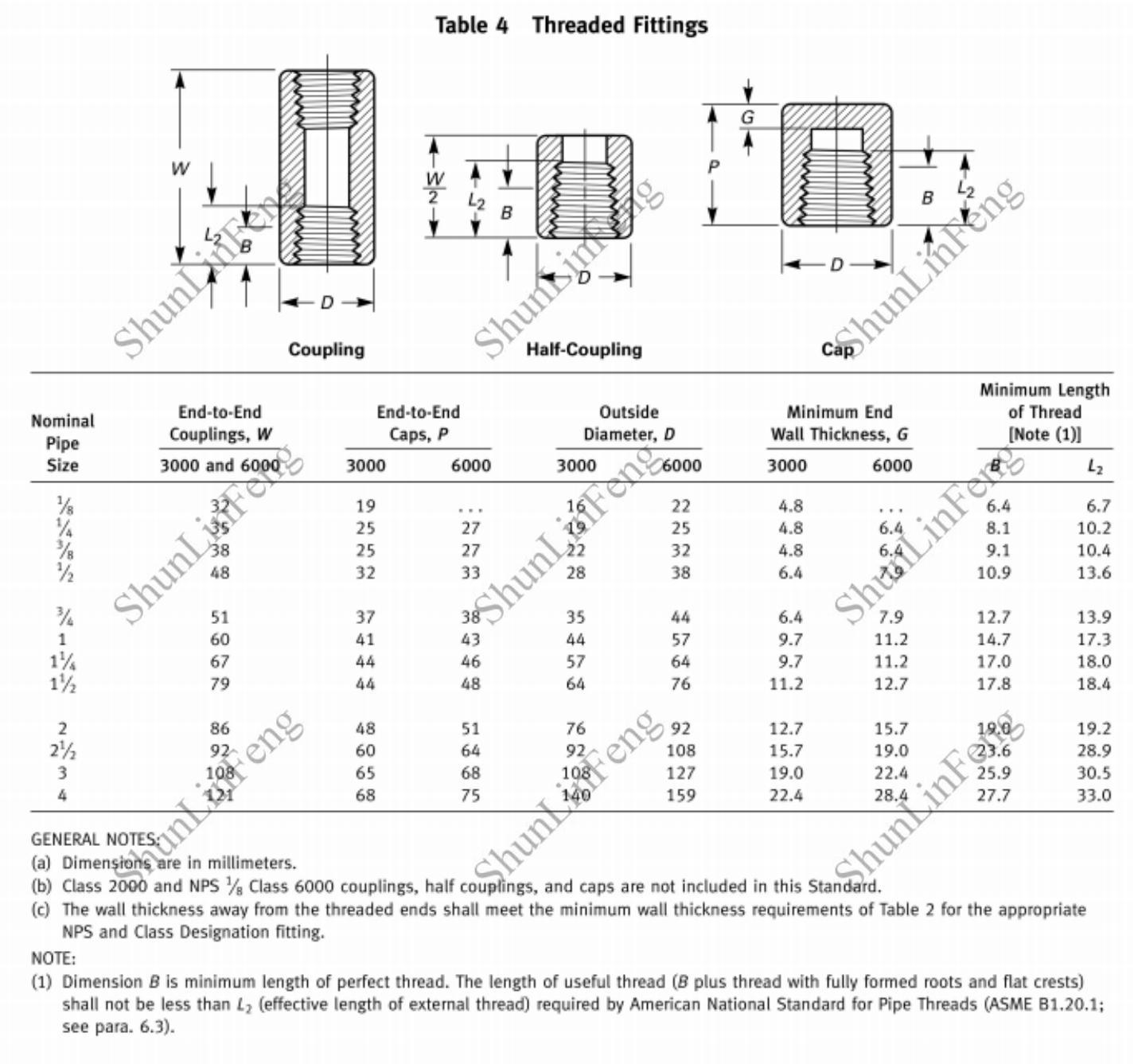

Standard
Product introduction
High-Pressure Half-Coupling (Threaded) – Technical Specification
1. Product Definition
A high-pressure threaded half-coupling is a semi-circular pipe fitting designed to:
- Provide a branch connection on existing pipelines without full disassembly
- Enable high-pressure tapping (up to 6,000 psi) via male/female threads
- Serve as an economical alternative to welded outlets in maintenance-sensitive systems
2. Design Features
✔ Split-Socket Body: Clamps around existing pipe (no full-circumference welding required)
✔ Reinforced Collar: Prevents thread deformation under high torque
✔ Hex Flats: For wrench tightening during installation
✔ Optional Boss Design: Integrates a welding pad for secondary reinforcement
3. Applications
- Retrofitting: Adding instrumentation taps to existing high-pressure lines
- Hydraulic Systems: Branch connections for pressure gauges/valves
- Oil & Gas: Temporary test points on wellhead manifolds
- Power Plants: Steam line sampling ports
4. Installation Protocol
1. Surface Prep:
- Clean pipe surface & apply thread sealant
2. Clamping:
- Secure half-coupling around pipe with high-tensile bolts
3. Sealing:
- For non-welded versions: Use EPDM gasket between coupling/pipe
- For weldable types: Seal-weld the outer perimeter
4. Thread Connection:
- Tighten threaded component to specified torque (per ASME B31.3)
5. Advantages vs. Full Couplings
✓ No Pipe Cutting: Installs on live pipelines
✓ Faster Installation: 60% quicker than welded outlets
✓ Adjustable Positioning: Rotatable after initial clamping
6. Standards Compliance
- ASME B16.11: Threaded/socket weld fittings
- API 6A: Wellhead equipment compatibility
- NACE MR0103: Sour service compliance
Note: For permanent installations >3,000 psi, recommend seal-welding the half-coupling perimeter.
Need custom configurations? Ask about:
- Integral bleed ports for pressure relief
- Inconel 718 threaded inserts for erosion resistance
- RFID-tagged couplings for asset tracking
Factory
Product packaging
We can provide wooden box packaging, pallet packaging, carton box packaging, and we can accept customized packaging.
FAQ
Q:Can I Get A Sample For Testing?
A:Yes, We Can Provide Free Samples, But You Need To Pay For The Shipping Cost.
Q:Is It Safe On The Payment For Me As We Are The First Cooperation?
A:We Can Do The Trade Assurance On Alibaba, Which Will Guarantee Your Payment Safety, We Also Accept Other Safe Payment Way As You Want.
Q:Do You Accept Product Customization?
A:Yes, We Can Accept Material Customization, Specification Model Customization, Drawing Customization, Packaging Customization.
Q:Can I Put Our Logo On The Product?
A:Yes, We Can Provide You With Laser Engraving Logo And Sticker Logo For Free.
Q:What Is The Moq?
A:For Trial Order, We Can Sell Even One Piece
Q:How Long Is The Product Warranty Period?
A:One Year, If The Product Is Non-Artificially Damaged During The Warranty Period, We Can Provide You With A New Product For Free.
Q:How Long Is The Delivery Time?
A:If We Have Stock, We Will Ship Within 2 Days, If There Is No Stock, We Will Ship Within 5-7 Days.
Q:Do You Accept Oem/Odm Service?
A:Yes, We Can Produce Products According To Your Requirements.
